Easily add z-wave functionality to products such as alarm panels, on/off sensors, relays and switches. The Universal Binary Sensor enables any sensor with a binary output to communicate with a Z-Wave network.
Availability: Out of Stock - on backorder and will be dispatched once in stock.

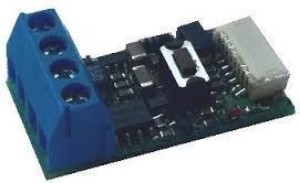

The fibaro universal sensor is designed for installation in the housing of another device to add z-wave functionality. The Z-Wave module provides two generic digital inputs and connections for up to four temperature sensors (not included). The device is small enough to fit within standard PIR sensor or other sensors like leak detectors, rain sensors etc to Z-Wave enable it.
Once additional safety housing have been installed, the Sensor can also be used in areas with high humidity and high temperature. The Sensor’s main function is the integration of the wireless Z-Wave System with the existing wire-based system. The device requires a dc supply voltage between 9 and 30V so it could be used for a wide range of applications.
♦ Extremely small size (30mm × 14mm × 12mm)
♦ Ease of use and installation
♦ Inputs: 2 potential-free inputs, 1 digital single-wire input
♦ Outputs: 2 potential-free outputs
♦ Supports four temperature sensors
